Mifare Readers
Mifare Readers include desktop, wall mounted, with USB，Serial or Wiegand output for commerical applications. Mifare card programmer encodes cards.
Customized Readers and Reader / Writer are available to meet your requirements. Normally it only takes a couple of weeks for us to get customized samples ready for you to test. |
|
|
|
|
|
|
|
|
Plug & Play, USB interface
101UM-UID-7Byte |
|
|
Mifare Reader reads both 7 Byte and 4 byte UID (CSN, Serial number) of Mifare cards, USB interface, plug & play under windows, Linux and MAC operating system, like a keyboard to input the UID into a selected field on screen., 20 or 10 digits in decimal output with "Enter". Size:104 x 69 x 11.6mm.
Output options: output without "Enter" or other formats as requested.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plug & Play, USB interface

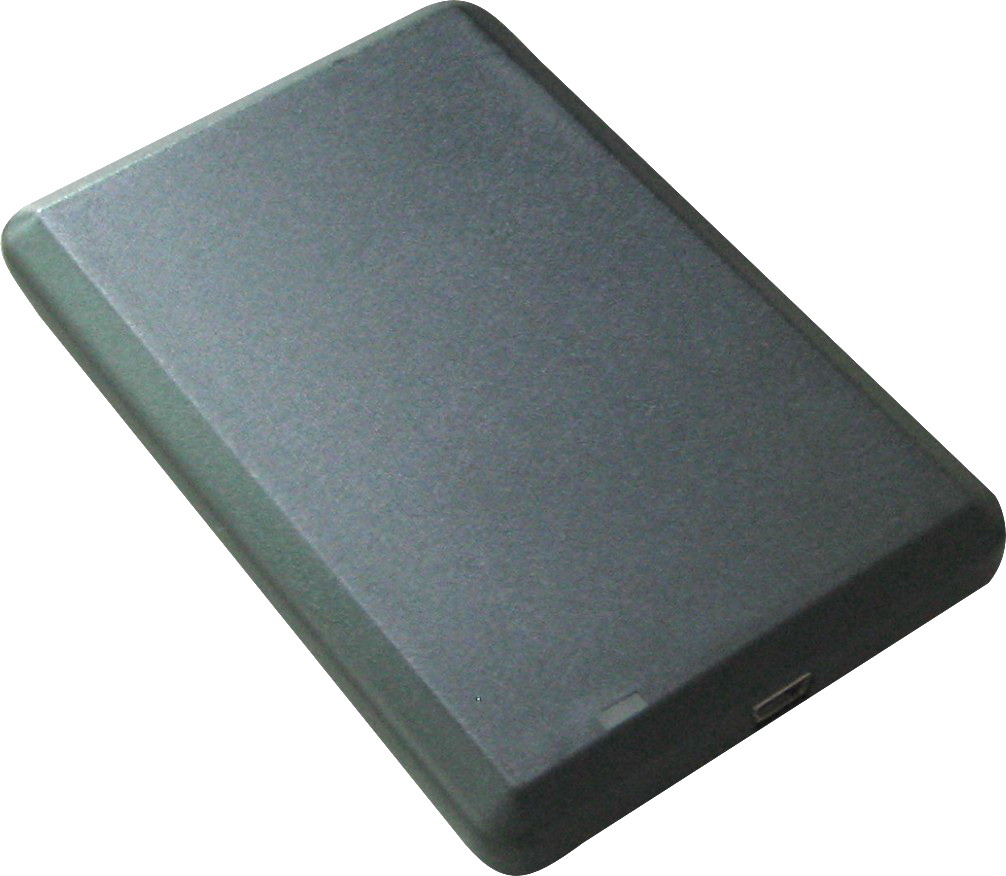

101UM-UID-4Byte |
|
|
|
|
|
|
|
Mifare Reader foreads 4 Byte UID (CSN, Serial number) of Mifare Cards, USB interface, plug & play under windows, Linux and Android operating system, like a keyboard to input the UID into a selected field on screen. 10 digits decimal output with "Enter". Size:104 x 69 x 11.6mm
Options: output without "Enter" or other formats as requested.
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plug & Play, USB interface
101UM_USB_S |
|
|
|
|
|
USB interface reader, plug & play under Windows Operating System, read CSN only (read Mifare card's unique serial number), 10 digits decimal output. plug & play under windows, like a keyboard to input the UID into a selected field on screen. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plug & Play, USB interface
101UM_USBS_w26
|
|
|
|
|
USB interface reader, plug & play, read CSN only (read Mifare card's unique serial number), 26 bits wiegand proximity number output. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
USB interface, Sector configurable
101UM_R |
|
|
|
|
|
|
|
|
|
|
Read Mifare 1k Card Sector Information, configureable. Need to install USB driver when first time plug to USB port. |
|
|
|
Custom to meet your requirement |
|
|
|
|
|
|
|
|
|
|
|
|
USB interface, Sector configurable
101UM_R |
| |
|
|
|
|
|
|
|
101UM_Sector_Plug&Play_r/n reader, USB interface, Plug and Play under windows, Linux and Android operating system, reading Mifare 1k Card, sector configureable via admin card. With output options: with or with Change line.Symbols includes: !"#$%&'()*+,-./01234567 89:;; <= )?@ABCDEFGHIJKLMNOPQRSTUVW XYZ[\]^_'abcdefghijklmnopqrstuvw yz{|}~ Size:156 x 80 x 25mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PC-Access
|
|
|
The reader is connecting to PC via USB interface. Its basic function: 1. The screen, keyboard, speaker and mouse are locked If there is no card presented on reader; 2. PC can be used as normal If the card is present on the reader; 3. If the reader is disconnected to PC, the screen, keyboard, speaker and mouse are locked; It's access controll for PC. PC-Access has more access features, say card only, Card+Pin; and Card+Card; All records can be stored at server when it is required.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wiegand output
101BM |
|
|
|
|
|
Wall mounted Indoor / Outdoor, Wiegand output,available as a 26/32/34/40 bit CSN reader and can also be customer-secured sector reader. |
|
|
|
Custom to meet your requirement |
|
|
|
|
|
|
|
|
|
USB interface, Reader / Writer
101UM_W |
|
|
|
|
|
Available as a reader / writer and can also be programmer.
Custom to meet your requirement |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mifare Programmer
101UMW
|
|
|
|
|
|
Mifare Card Programmer with RS232 interface, including software. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Desfire Reader, Wiegand output
101HM |
|
|
|
|
|
DESfire Card Reader , Wiegand output, Read the Application Documents of Mifare Desfire Card High Security Performance Through Triple DES Encryption |
|
|
|
Also read the Sector Data of Mifare 1k card |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
